Matek Systems BetaFlight F405 - CTR Flight Controller - Black - 3S60860512

Features:
3 x LED for FC status (blue, red) and 3.3V indicator (red)
6 x PWM/DSHOT output without conflict
5 x UART

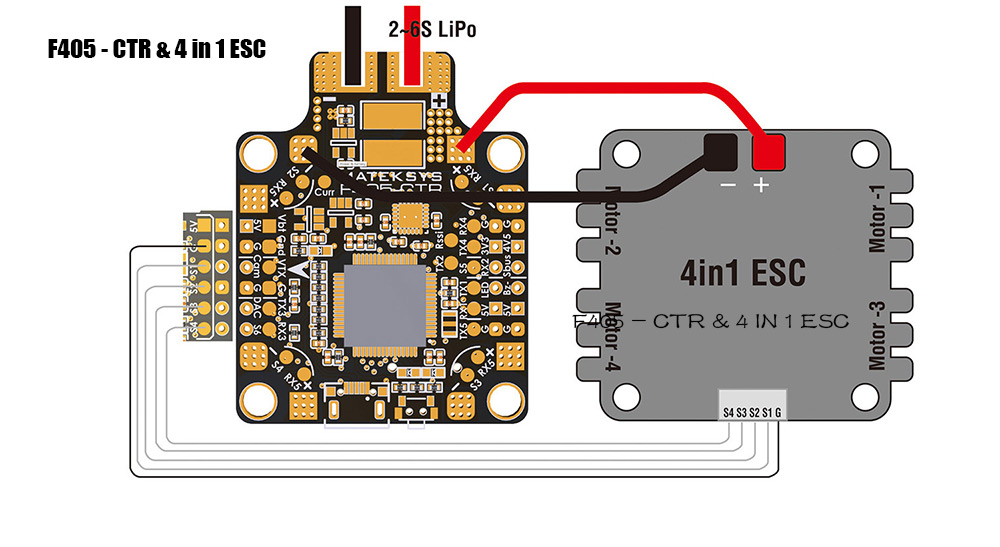

1 x Group of G/S1/S2/S3/S4 pads for 4 in 1 ESC signal/GND
4 x Pairs of corner pads for ESC signal/GND connections (DSHOT compatible)
1 x Pair I2C1 pads
1 x Side-press button for BOOT (DFU) mode

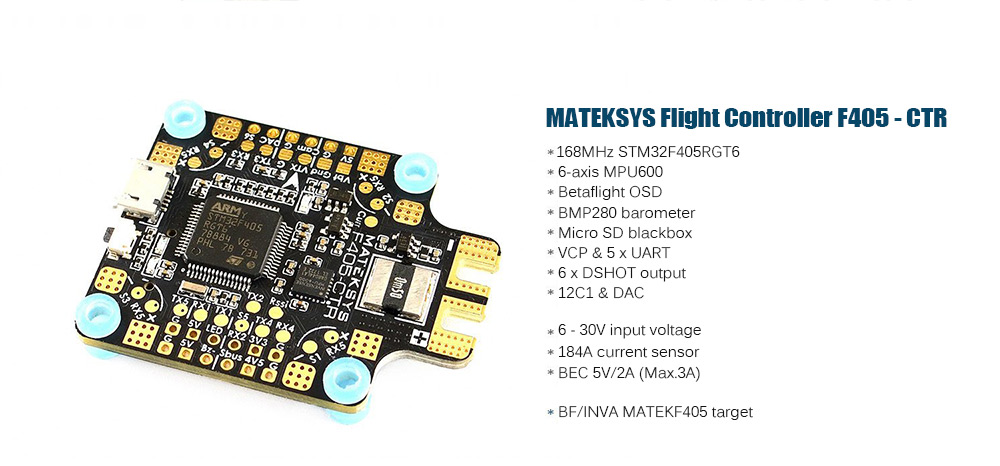

FC Specifications:
MCU: 168MHz STM32F405
IMU: MPU6000 accelerometer (SPI)
Baro: BMP280 (I2C)
OSD: BetaFlight OSD with AT7456E chip
Blackbox: Micro SD card slot (SD/SDHC)

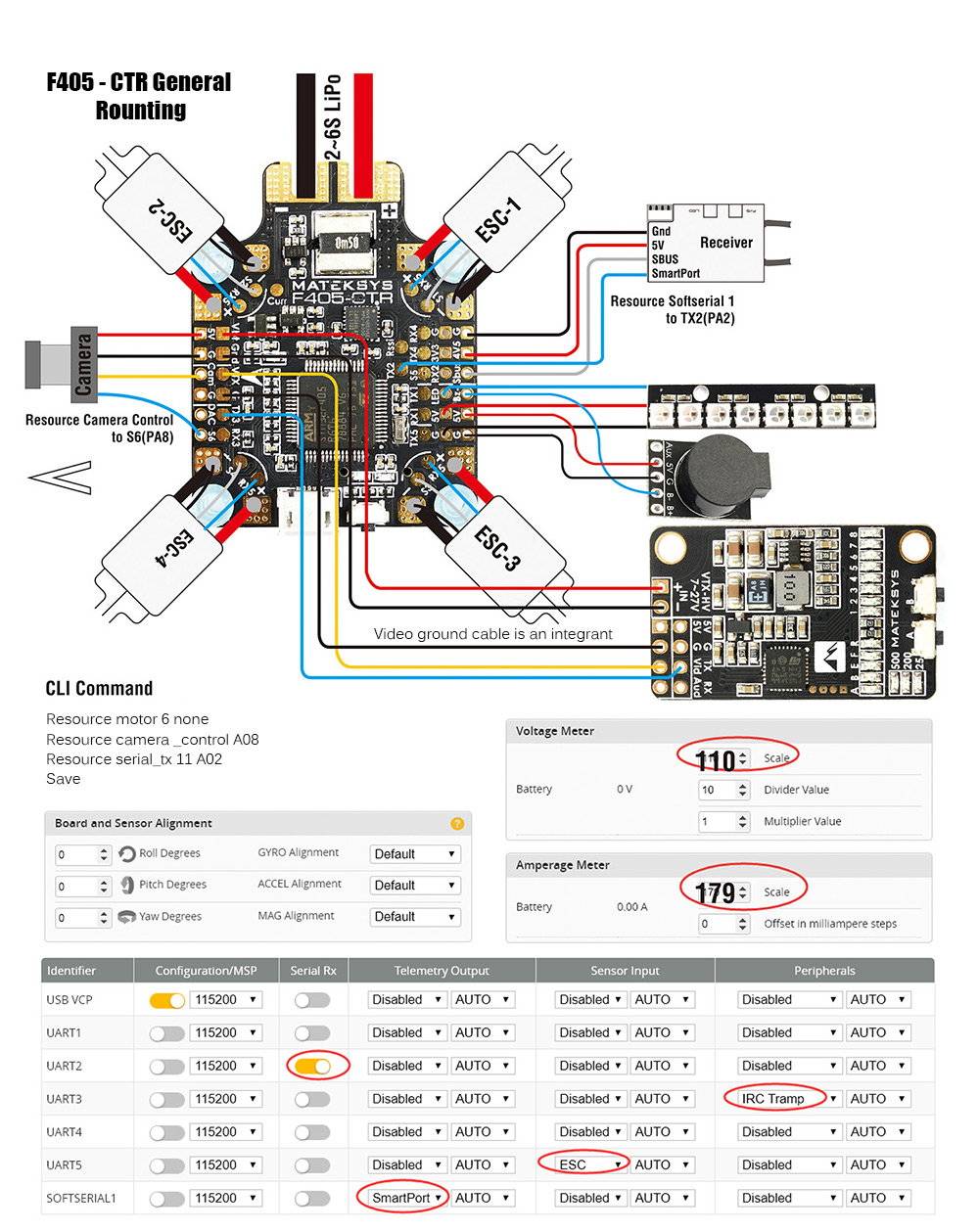

VCP, UART1, UART2, UART3, UART4, UART5
Built-in inverter for SBUS input (UART2 - RX)
PPM/UART shared: UART2 - RX
Soft serial on TX2, S5 or S6 optional
Camera control on S6 or DAC optional
Smart audio and tramp VTX protocol supported
WS2812 LED strip : Yes
Beeper : Yes
RSSI: Yes

PDB Specifications:
Input: 6 - 30V (3 - 6S LiPo) with TVS protection
PDB: 4 x 30A (Max. 4 x 46A), 6 layers x 2oz copper PCB
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.300mA for Spektrum RX
Current sensor 184A (scale 179)
Battery voltage sensor: 1:10 (scale 110)
